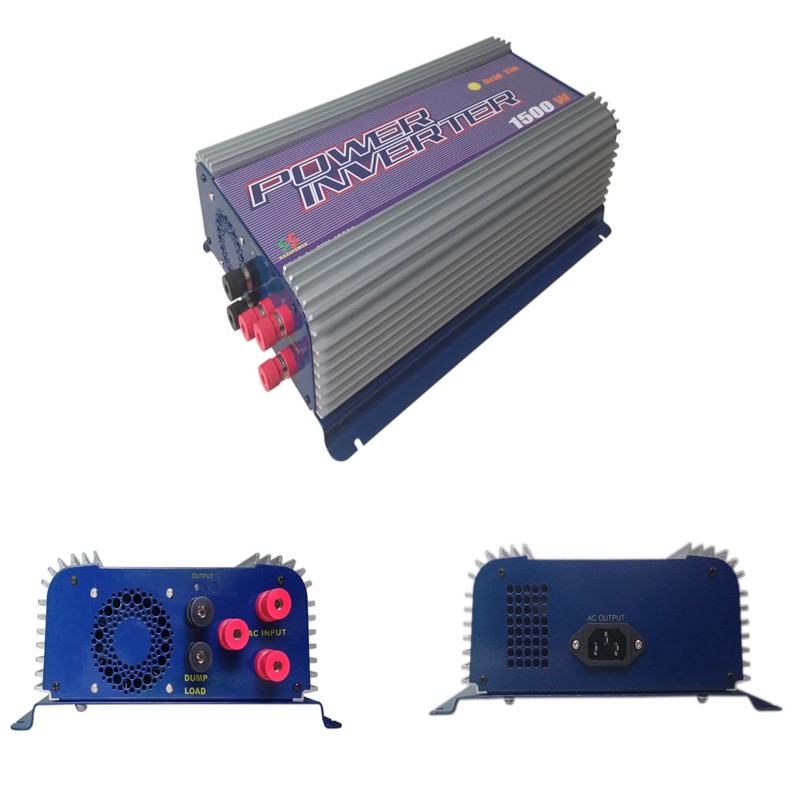

1500W Grid Tie Inverter with Dump Load for 3 Phase AC Wind Turbine Grid Tie Inverter 45-90V Input MPPT Pure Sine Wave NEW
1500W Grid Tie Inverter with Dump Load for 3 Phase AC Wind Turbine Grid Tie Inverter 45-90V Input MPPT Pure Sine Wave Inverter
Notice :for the inverter ,we have 110v and 220V output ,please leave me a message to tell me which one you want when you place the order !!!
For 3 Phase AC Wind Turbine
Build In Dump Load Controller
Build In High Wind Protection
The grid-tie inverter can transfer wind energy from wind generators directly into the home grid using no extra equipment. It can be connected to any outlet (conventional network) in the home. The grid-tie inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine-wave and matches that of the grid.
This model grid-tie has build in bridge rectifier and dump load controller, it can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system cant keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used.
On the LCD Panel of the inverter, there is one AC output socket, that will connect the AC output cable to home grid. The LCD display will display the grid AC voltage, current , active power and electric energy that combined to the grid.
1. Electric parameters measurement function (voltage, current and active power, electric energy).
2. Running time function (record load cumulative working hours).
3. Backlight function.
4. Power down data save function (save the number of kWh, operation time).
5. Large screen LCD display (display voltage, current, power, active power, cumulative running time)
UP: Short press will display power, electricity, current and voltage in anti-sequence.
DOWN: Short press will display power, electricity, current and voltage in sequence.
BACK LIGHT: Short press will open or close backlight.
1 Piece 3 Phase AC Wind Turbine Grid Tie Inverter 1500W
1 Piece User Manual (English)
we can offer original photoes and the Electronic Manuals if you want drop shipping
|Normal AC Output Power||1350W|
|Maximum AC Output Power||1500W|
AC Output Voltage Range
|220V/230V/240V||190V ~ 260V|
|110V/120V||90V ~ 130V|
|AC Output Frequency Range||46Hz ~ 65Hz|
|Total Harmonic Distortion(THD)||<5%|
|Input Voltage Range|
(the test point is at the output of the rectifier)
|Peak Inverter Efficiency||92%(Consumption of the rectifier is not calculated)|
|Standby Power consumption||<1.5W|
|Output Current Waveform||Pure Sine-wave|
|Over Current Protection||Yes|
|Over Temperature Protection||Yes|
|Reverse Polarity Protection||Yes|
Operating Temperature Range
-10 ~ 45\'C
1. WORLDWIDE SHIPPING.
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5.Ordes processed within 24-48 hours of payment verification.
6. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
7. If you have not received your shipment within 40 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
8. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po #.
3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from aliexpress. OR, you may choose to have a replacement.
4. We will bear all the shipping cost if the product (s) is (are) not as advertised.
1. 12 months Manufacturer `s limited Warranty for defective items (excluding items damaged and / or misused after receipt). MPPT solar controllers come with 24 months warranty.
2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY .
You agree to all of the above-listed policies upon ordering on aliexpress!
We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
It is impossible to address issues if we do not know about them!
|Output Voltage||190V ~ 260V|
1500W Grid Tie Inverter with Dump Load
- Brand: Inverter Expert
- Product Code: 1500W Grid Tie Inverter 45-90V
- Availability: In Stock
